Stand Post Type

Water and Foam Monitor

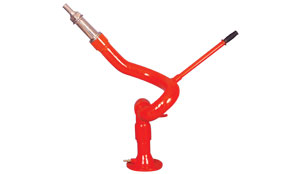

Stand Post Type Water and Foam Monitor


Design & Construction As Per IS: 8442
Materiel Seamless Mild Steel Tubes
Size of Monitor 63 mm
Size of Inlet Flange 80 mm
Construction Welded From M.S. Seamless Pipes, Bends, etc.
Discharge Capacity 1750 LPM
Horizontal Throw 50 - 55 Meters
Rotation 360
Elevation 58 to 30
Joint Swivel Type (Gun-Metal)
Jet Spray Nozzle Gun Metal or Aluminium
Operative Pressure 0.7 N/mm at Nozzle End
Leakage Pressure To withstand a pressure of 2.3 N/mm



Oil Sector
Chemical Plants
Fertilizers and
Fire Tenders etc.
