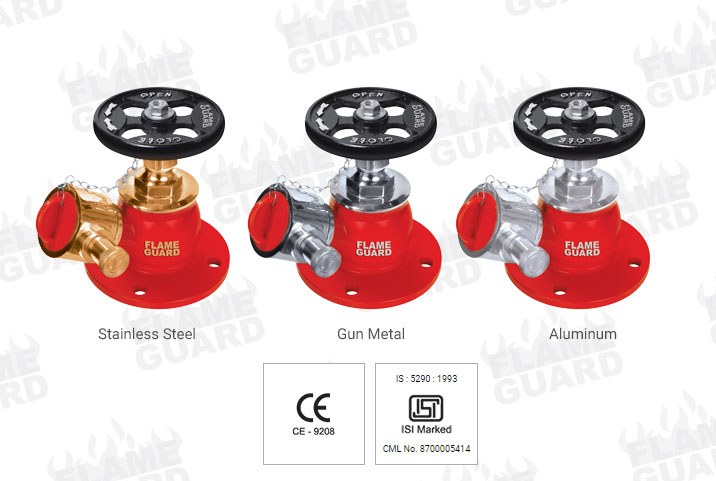

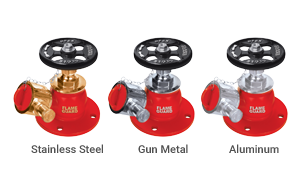

Oblique Type Landing Valve

TECHNICAL SPECIFICATION

(Type ‘A’) ISI Marked)

Size :

63mm

Inlet :

80mm NB Flanged

Outlet :

Female Instantaneous

Conforming Specification :

IS: 5290:1993

Performance Test :-

Hydraulic Test :

21kgf/cm2

Water Tightness Test :

5kgf/cm2

Flow Test :

900 LPM at 7 kgf/cm2

Hand Wheel:

Grey Cast Iron

Halogram :

Sticker stuck on Landing Valve



FEATURES

Type of Material	Stainless Steel	Gun Metal	Aluminum
Body, Bonnet Assembly	Stainless Steel – IS:3444	LTB2 - IS:318	IS:617
Valve Spindle	Stainless Steel - IS:6603	Brass Rod - IS:319/320	Stainless Steel - IS:6603
Cast Iron Wheel	IS:210	IS:210	IS:210
Rubber Washer	IS:937 (Type-A)	IS:937 (Type-A)	IS:937 (Type-A)
Spring	Stainless Steel - IS:6528	Stainless Steel - IS:6528	Stainless Steel - IS:6528
Gland Packing - Asbestos Thread	IS:4687 (Type - 3)	IS:4687 (Type - 3)	IS:4687 (Type - 3)

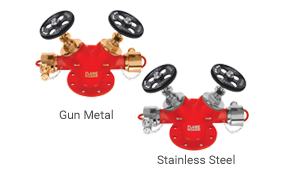

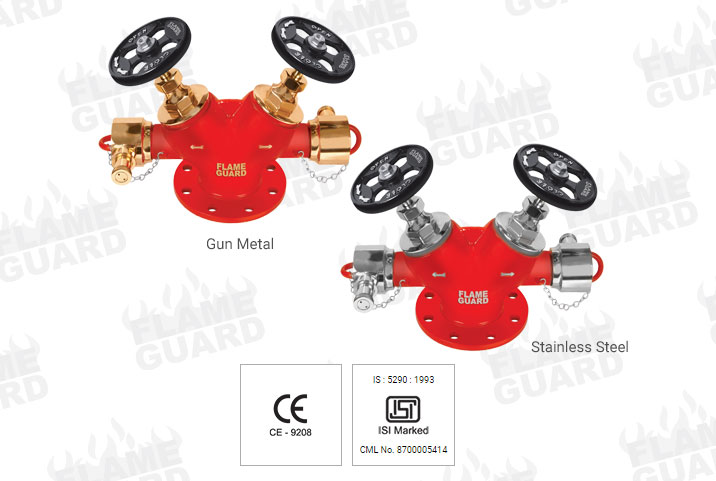

Double Outlet Landing Valve

TECHNICAL SPECIFICATION

(Type ‘B’) ISI Marked

Size :

63mm

Inlet :

100mm NB Flang

Outlet :

Female Instantaneous

Material:

Gun Metal/ Stainless Steel

Conforming Specification :

IS 5290:1993

Performance Test :-

Hydraulic Test :

21kgf/cm2

Water Tightness Test :

14kgf/cm2

Flow Test :

1800 LPM at 7 kgf/cm2

Hand Wheel :

Grey Cast Iron

Halogram :

Sticker stuck on Landing Valve



FEATURES

Type of Material	Gun Metal	Stainless Steel
Body, Bonnet Assembly	LTB2 - IS:318	Stainless Steel – IS:3444
Valve Spindle	Brass Rod - IS:319/320	Stainless Steel - IS:6603
Cast Iron Wheel	IS:210	IS:210
Rubber Washer	IS:937 (Type-A)	IS:937 (Type-A)
Spring	Phosphorus Wire - IS:7608	Stainless Steel - IS:6528
Gland Packing - Asbestos Thread	IS:4687 (Type - 3)	IS:4687 (Type - 3)
