Hose Reel

Drum & Pipes





  • IS : 884 : 1985
    CML No. 8700004412

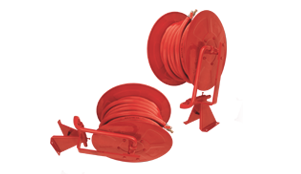

Swinging Type Wall Mounted First Aid Hose Reel Drum

TECHNICAL SPECIFICATION

Conforming to:

IS:884/ 1958

Size: Inlet :

1” Threaded lnlet Connection

Type :

Swinging 180 Wall Mounting

Outlet :

3/4” / 1” / 1-1/2 outlet connection For House to accommodate 30/ 36/ 40 Mtrs. Hoses

Performance Test :-

Hydrostatic Test :

Tested at 21 Kgf/cm2 Range & Water Flow rate test at 7Kgf/ cm2

(A) Discharge:

24 LPM

(B) Range (Jet Length) :

6 Mtr (Min)

Halogram:-

Sticker Stuck on Wheel

FEATURES

Hub Sides & Wall Bracket M.S. Sheet of IS : 513
Swivel Joint LTB - 2 of IS : 318
Pipe with Fitting Steel of IS : 1239 Part 1
Nozzle IS : 8090
Hose Reel Tubing Thermoplastic Hose confirming to IS : 12585







  • IS : 12585 : 1988
    CML No. 8700001313

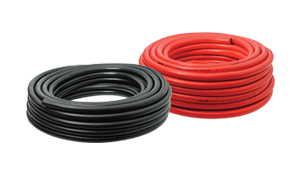

Thermoplastic Hose Pipe ( Textile Reinforced ) for Water

TECHNICAL SPECIFICATION

IS: 12585 - Type - 1 W.P. 6 Kgf/cm2

IS: 12585 - Type - 2 W.P. 10 Kgf/cm2

Construction:-

Lining :

A flexible Thermoplastic Lining, Smooth in bore.

Reinforcement :

A Natural or Synthetic Textile

Reinforcement :

A flexible thermoplastics cover, which may have a smooth or fluted.

Nominal Bore (ID) :

10.00 mm to 50.00 mm

Application:

This Hose is used for water delivery & Fire Fighting purpose.
