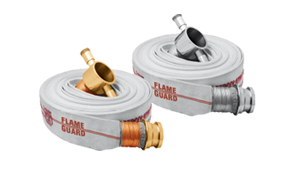

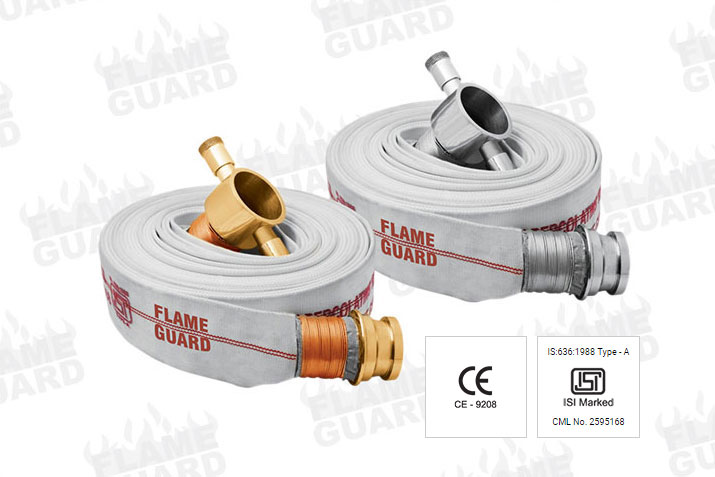

Conforming to IS 636/1988 Type-A ISI Marked
Application
This RRL Hose used for water deliverypurpose in Fire-Fighting & Civil Engineering Applications etc.
Jacket
Circular woven jacket made from a special blend of cotton & synthetic yarn with high abrasion and heat resistance Jacket is also treated with suitable rot proofing agent.
Reinforcement
A thin fabric reinforcement bonded by a Special adhesive.
Rubber Lining
A rubber inner lining with suitable rubber compound which gives flexibility, durability & better resistance.
Standard Length
7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs.
End Connection
As per customer requirements
Compact, Flexible & Light weight, Abrasion Resistant, Ability to withstand high operating & back Pressure.
| Dimameter MM | Bursting Pressure KCF/CF | Test Proof Pressure KGF/CM | Coil Diameter (30MTR) CM |
|---|---|---|---|
| 38 | 35.7 | 21.4 | 44-45 |
| 50 | 35.7 | 21.4 | 44-45 |
| 63 | 35.7 | 21.4 | 44-45 |
| 70 | 35.7 | 21.4 | 44-45 |

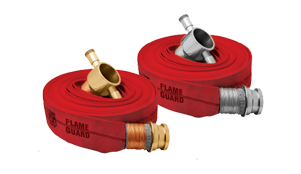

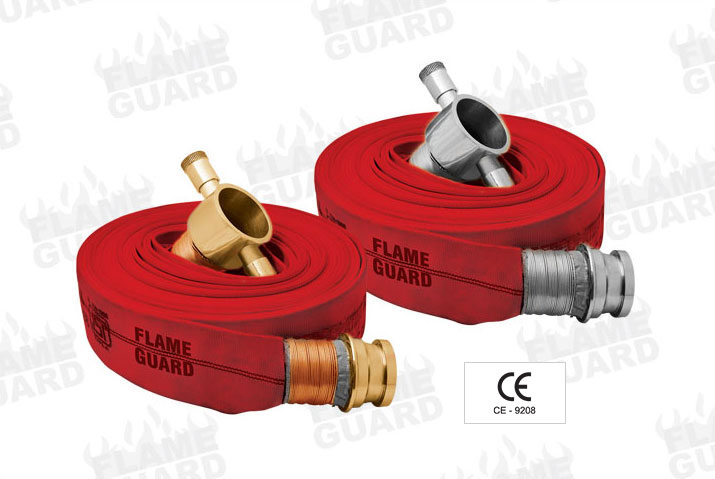

RRL Hose with Elastomeric Coating conforming to As per ISO : 636/1988 Type-A
Application
This RRL Hose is used for water delivery purpose in Fire Fighting, Oil & Power Sector, Industrial Plants, & Sailing Vessels.
Jacket
Circular Woven jacket made Form a 100% synthetic yarn with high abrasion and heat resistance. The woven jacket is treated with a special Elastomeric. Coating to give protection against moisture and fungus.
Reinforcement
A thin fabric Reinforcement bonded by a Special Adhesive.
Rubber Lining
A rubber inner lining with suitable rubber compound which gives flexibility, durability & better resistance.
Standard Length
7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs.
End Connection
As per customer requirements
Compact, Flexible & Light weight , Abrasion, Bacteria & fungus Resistant Ability to withstand high operating & back pressure , Unaffected with mild dew.
| Dimameter MM | Bursting Pressure KCF/CF | Test Proof Pressure KGF/CM | Coil Diameter (30MTR) CM |
|---|---|---|---|
| 38 | 35.7 | 21.4 | 44-45 |
| 50 | 35.7 | 21.4 | 44-45 |
| 63 | 35.7 | 21.4 | 44-45 |
| 70 | 35.7 | 21.4 | 44-45 |

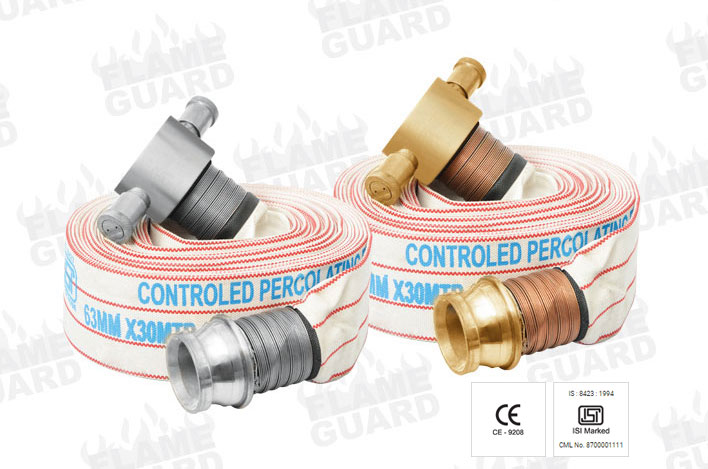

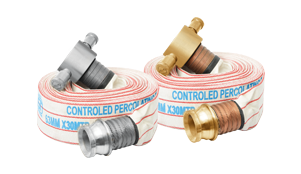

Hose
Conforming to IS:8423/1994, ISI Marked.
Application
This hose used for water delivery purposein fire-Fighting irrigation & floor washing etc.
Jacket
Circular woven jacket made from a special synthetic yarn.
Rubber Lining
An ultra thin layer of rubber lining with suitable rubber compound which ensure controlled percolation.
Standard Length
7.5 mtrs, 15Mtrs, 22.5Mtrs & 30Mtrs.
End Connection
As Per customer requirements
Compact Flexible & Light weight , Low friction loss,Abrasion resistance Ability to withstand high operating & back pressure.
| Dimameter MM | Bursting Pressure KCF/CF | Test Proof Pressure KGF/CM | Coil Diameter (30MTR) CM |
|---|---|---|---|
| 38 | 35.7 | 21.4 | 44-45 |
| 50 | 35.7 | 21.4 | 44-45 |
| 63 | 35.7 | 21.4 | 44-45 |
| 70 | 35.7 | 21.4 | 44-45 |
