Size of Branch Pipe:
63mm
Size of Nozzles :
6mm, 12mm, 15mm, 20mm and 25mm
Material:
Gun metal/ Stainless Steel/Aluminium Alloy
Conforming Specification :
IS 903:1993
Performance Test :-Hydrostatic Test :
Tested at 21 Kgf/cm2
Working Pressure:
7Kgf/cm2
Finish:
Natural Polished
Halogram:-
Sticker Stuck on Nozzle

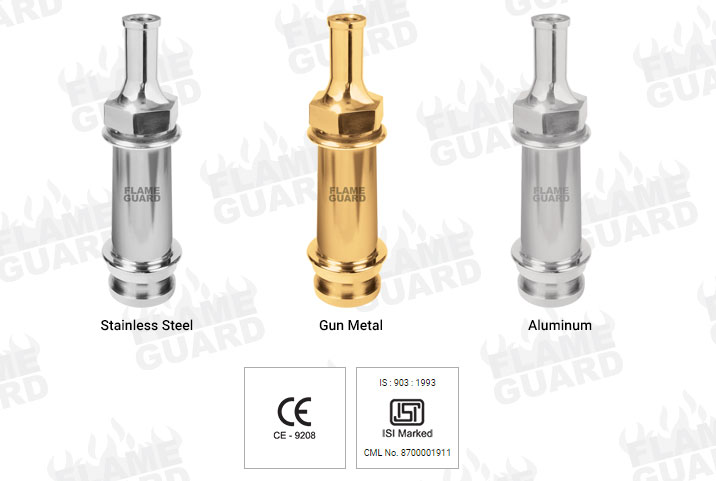

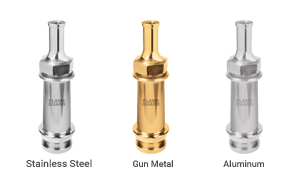

| Type of Materia | Stainless Steel | Gun Metal | Aluminum |
|---|---|---|---|
| Body, Assembly | Stainless Steel - IS:3444 | LTB2 - IS:318 | IS:617 |
| Rubber Washer | IS:937 (Type-B) | IS:937 (Type-B) | IS:937 (Type-A |
